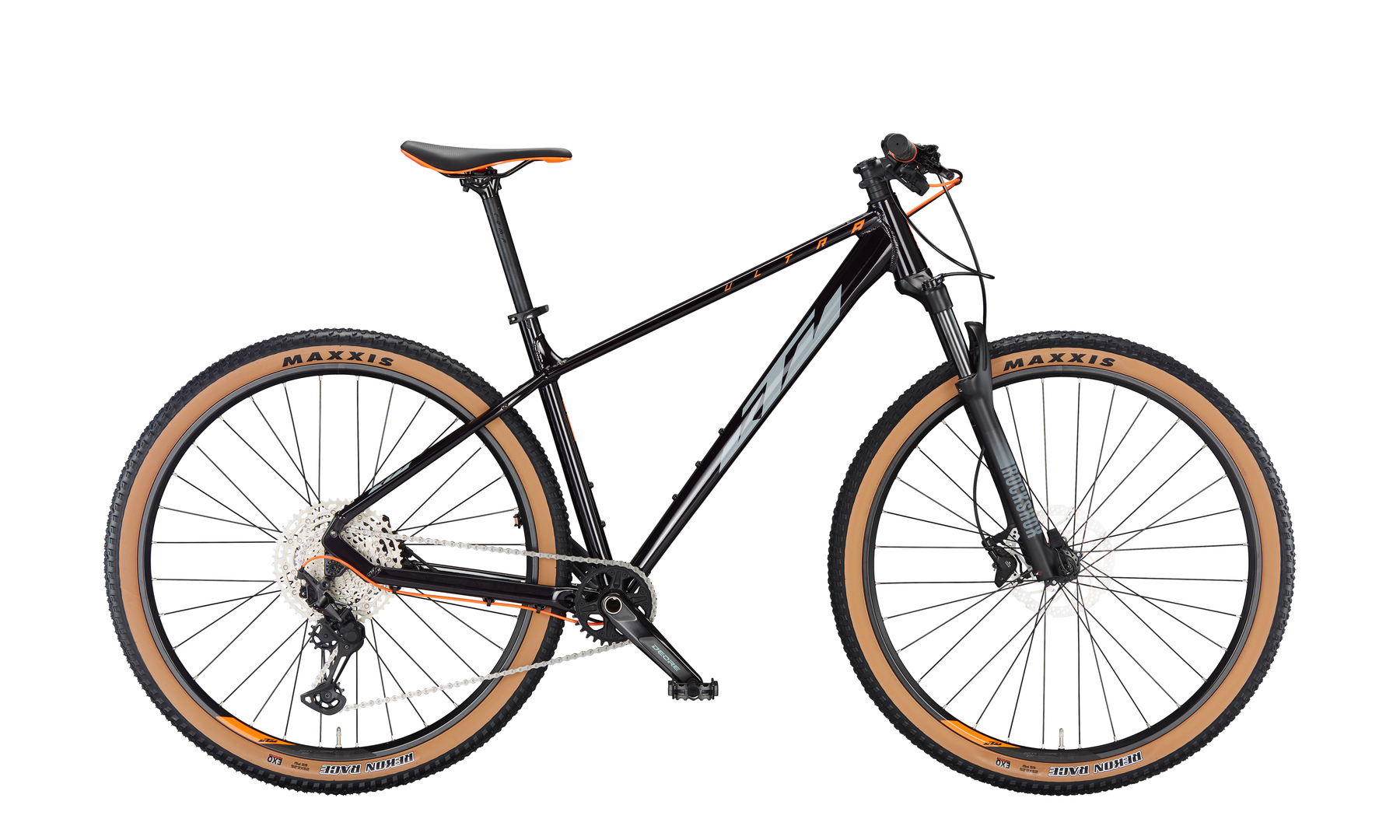

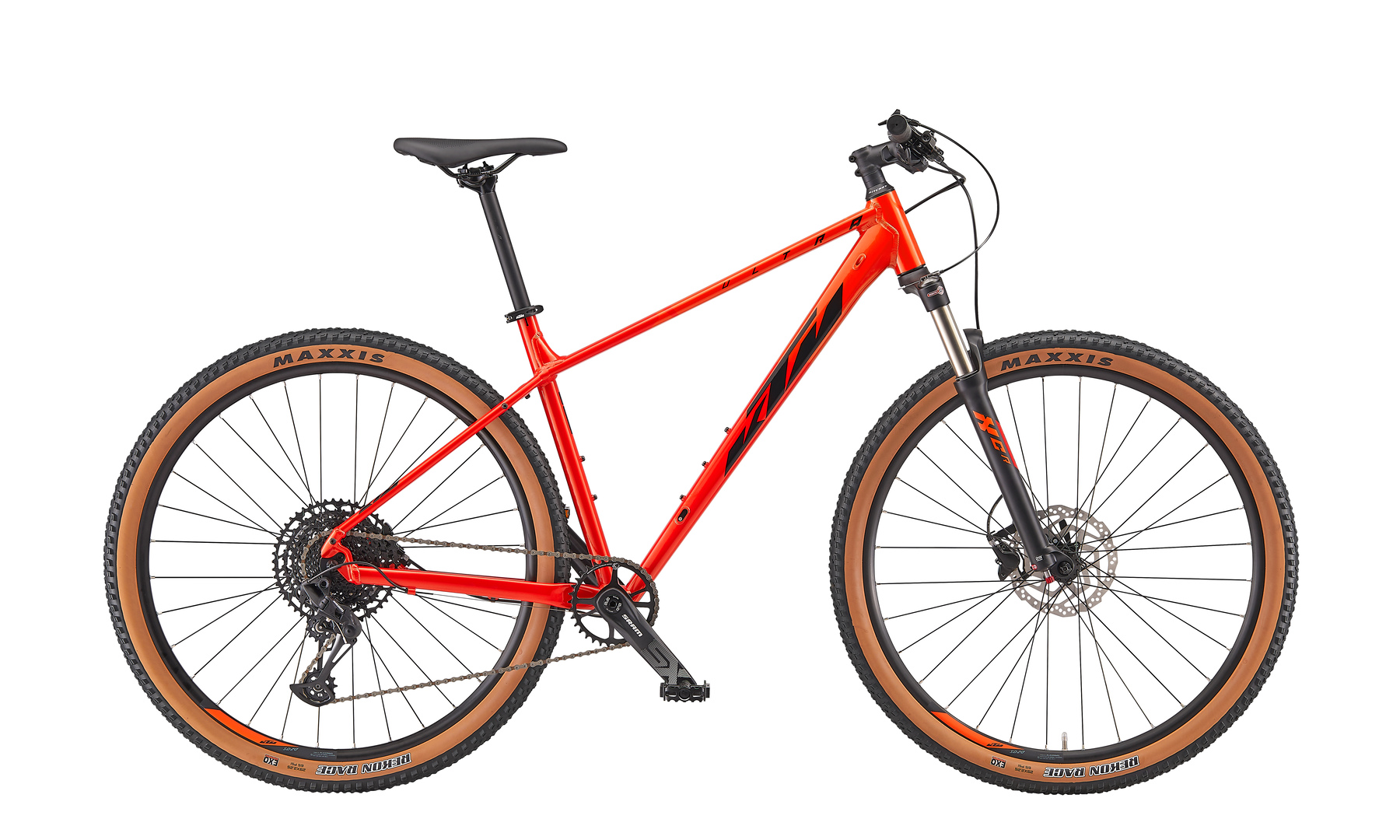

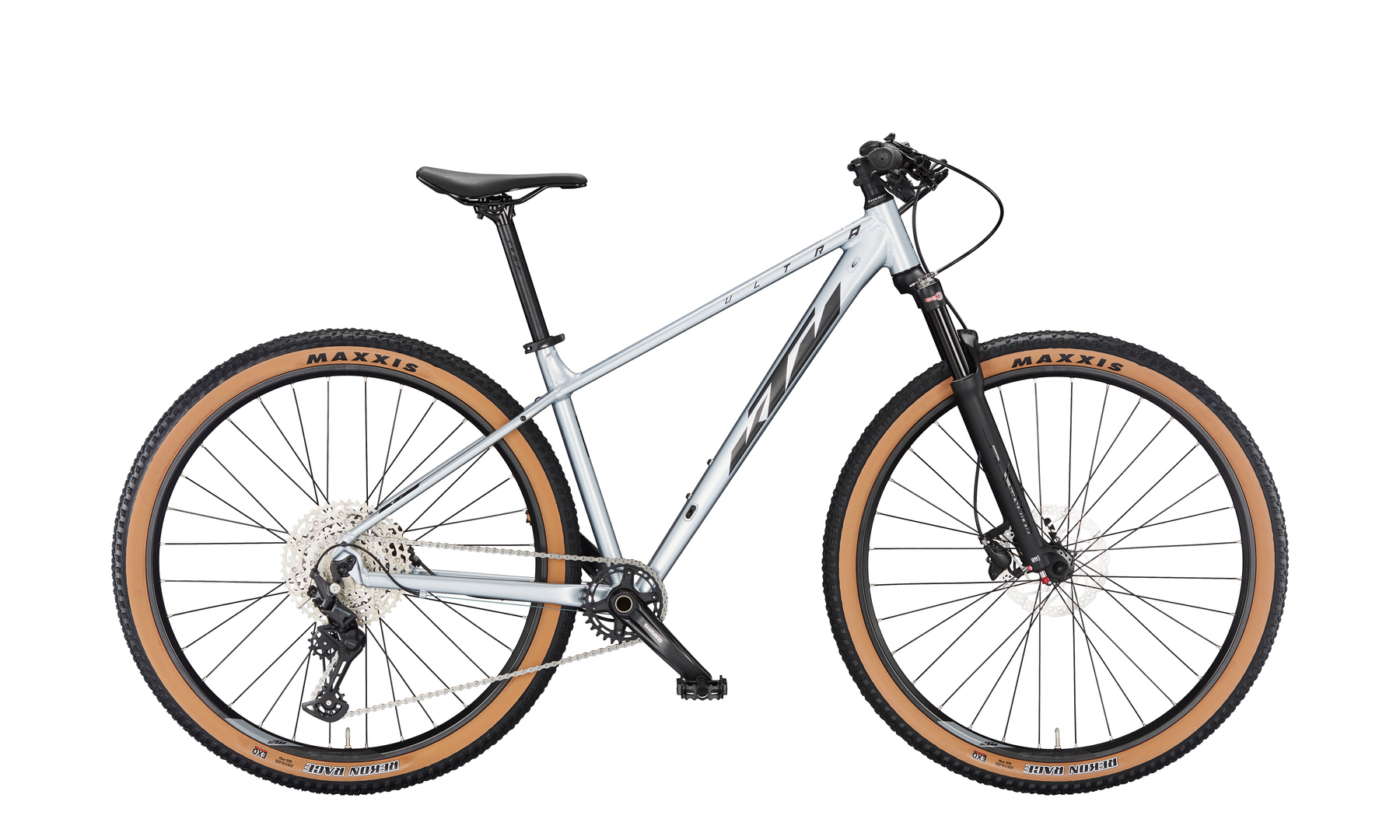

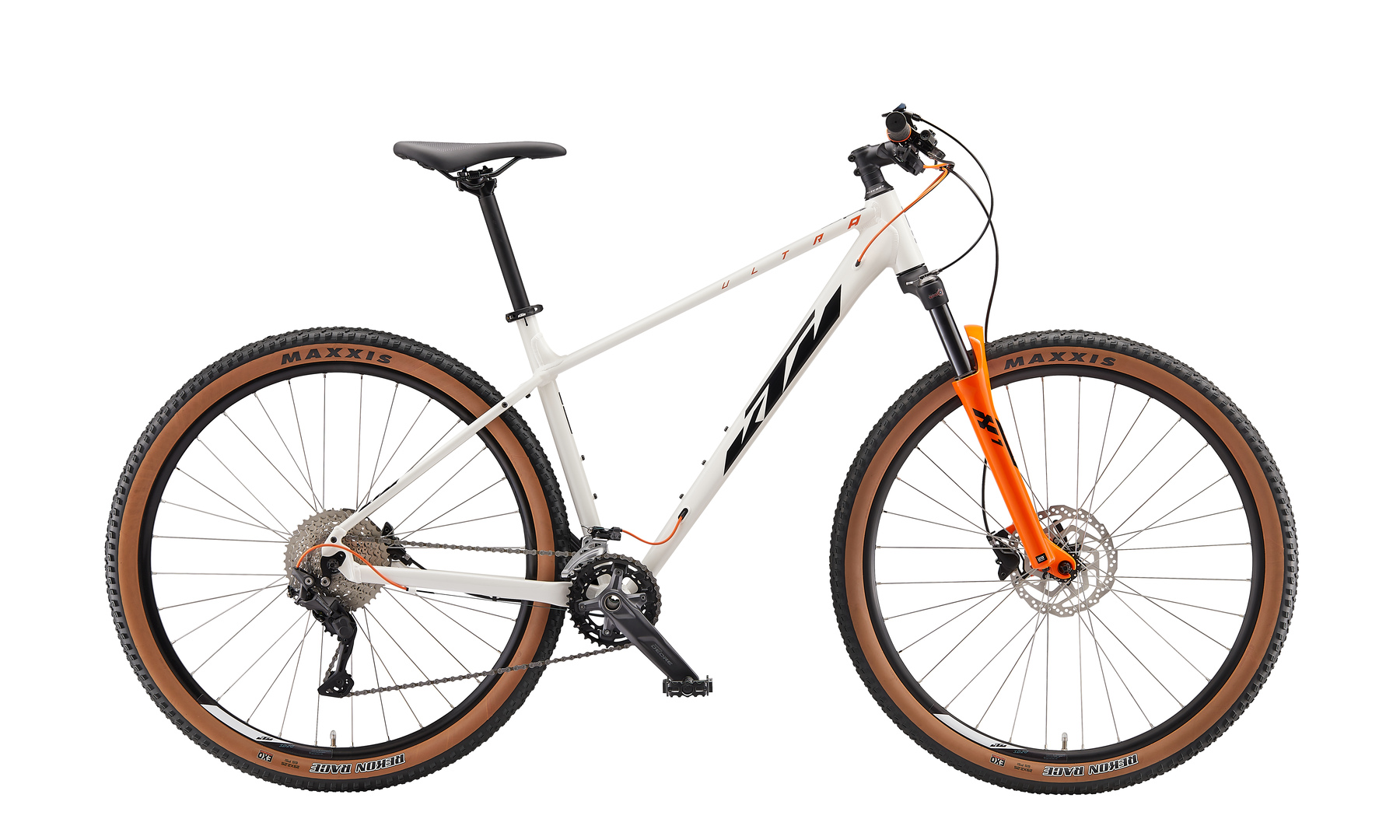

A RELATIONSHIP YOU CAN TRUST. Already two years pasted since our aluminium classic got a new frame. The strong and extra light aluminium bike offers perfect performance for everyday life and on the trails. We have lengthened the top tube and slackened the head angle to make this Ultra the most stable, fastest and fun one yet. Extra stiffness comes from the rear triangle with boost thru axle. The tapered 27.2mm seat post offers increased comfort. To save weight, the triple butted alloy tube frame is optimized for one-by drive chains. The bike is kickstand, fender and carrier ready, enabling you to create the ultimate utility vehicle.
FRAME | 29" Alloy 6061 MTB ULTRA TB / M-1306 |
---|---|
FORK | RockShox Judy Silver TK 29" 100mm remote 15x110 taper |
R. DERAILL. | Shimano Deore XT M8100-12 SGS shadow+ |
SHIFTLEV. | Shimano Deore M6100-12 |
CRANKSET | Shimano Deore M6100 32T |
SPROCKET | Shimano M6100-12 / 10-51 |
CHAIN | Shimano M6100-12 |
BRAKE | Shimano M4100 / MT410 2-Piston |
ROTOR | Shimano RT30 CL 180 / 160 |
WHEEL F | KTM Line - Shimano HB-MT410 CL 32H 110 TA / KTM 28" Sport 32H; 622x22 / Richman 2.0 INOX, black |
WHEEL R | KTM Line - Shimano FH-MT410 CL 32H 148 TA / KTM 28" Sport 32H; 622x22 / Richman 2.0 INOX, black |
TIRE F | Maxxis Rekon Race EXO 57-622 |
---|---|
TIRE R | Maxxis Rekon Race EXO 57-622 |
GRIP | KTM Prime silicone |
BAR | KTM Comp flat 2X 720mm |
STEM | KTM Team 7° |
HEADSET | KTM Team drop/in 1.1/8"-1.5" |
SADDLE | KTM Comp MTB Sport |
SEATPOST | KTM Comp 27.2 |
PEDAL | KTM Team MTB SB |
WEIGHT | 13,70 kg |
PERMISSIBLE TOTAL WEIGHT | 115 kg |
